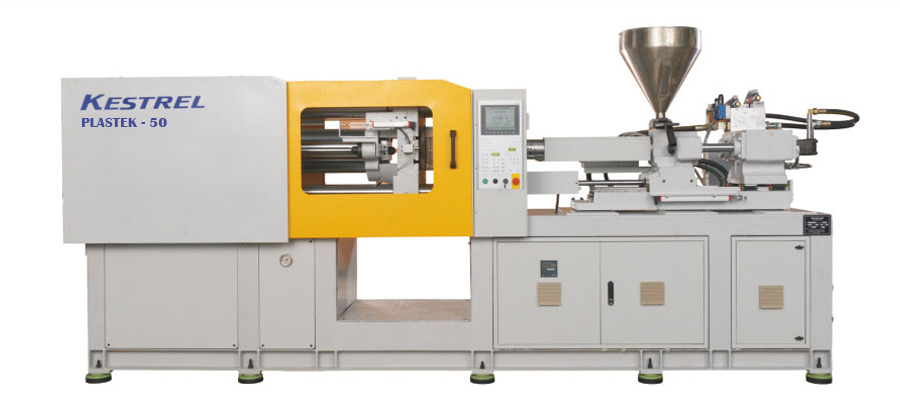

PLASTIC INJECTION MOLDING MACHINES
| SPECIFICATIONS | UNIT | A | B | C |
|---|---|---|---|---|
| Screw Dia | mm | 28 | 32 | 36 |
| Injection Pressure | kg/cm² | 2480 | 1900 | 1500 |
| Injection Volume | cm³ | 77 | 100 | 127 |
| Shot Weight PS | gram | 69 | 90 | 114 |
| Shot weight PE | gram | 55 | 72 | 92 |
| Screw Stroke | mm | 125+5 | 125+5 | 125+5 |
| Injection Rate | cm³/sec | 53 | 69 | 88 |
| Injection Speed | mm/sec | 86 | 86 | 86 |
| Plasticizing Capacity | kg/hr | 22 | 24.5 | 32 |
| Max. Screw Speed | rpm | 300 | 250 | 250 |
| L/D Ratio | - | 20:01 | 20:01 | 20:01 |
| Nozzle Contact Force | ton | 1.1 | 1.1 | 1.1 |
| Heater Capacity | kw | 5.8 | ||
| Clamp Force | ton | 50 | ||
| Mold Opening Force | ton | 2.3 | ||
| Mold Opening Stroke | ton | 350 | ||
| Distance Bet.tie Bars | mm | 320x320 | ||
| Platen Dimensions WxH | mm | 500x520 | ||
| Maximum Day Light | mm | 500 | ||
| Minimum Mold Height | mm | 150 | ||
| Mold Closing Speed-Max | m/min | 40 | ||
| Mold Opening speed-Max | m/min | 40 | ||
| Ejector Force | ton | 1.8 | ||
| Ejector Stroke | mm | 75 | ||
| Pump Motor | kw | 7.5 | ||
| Oil Tank Capacity | Itr | 125 | ||
| Machine Dimension LxWxH | mm | 4000x1000x2000 | ||
| Machine Weight | ton | 4 | ||
| System Pressure | bar | 150 | ||
